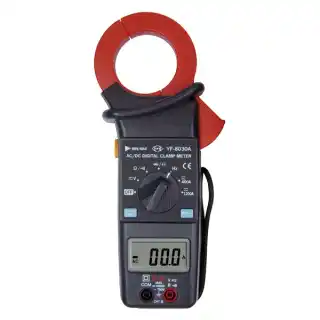

Ampe Kìm TENMARS YF 8030A
THÔNG SỐ KỸ THUẬT Ampe Kìm TENMARS YF 8030A:
1200A AC /DC Clamp-On Meter
DISPLAY
– 3¾ digits LCD with maximum reading 4000.
– Overload indication: ‘ 4 ‘ or ‘ -4 ‘ flash accompany with continuous buzzer.
– Automatic polarity, ‘ – ‘ display for negative input.
– Low battery indication.
FUNCTIONS
– Function keys: Max/Min Hold.
– Test ranges: ACV, ACA, DCV, DCA, Ohm, Frequency, Diode, Continuity, Capacitance(1pF~30uF).
SPECIFICATIONS
| Model | YF-8030A |
| Max measuring current | 1200A |
| Display counts | 4000 |
| Max conductor size | 52mm |
| AC Current | 0.1A~1200A +/- (2.0%+5) |
| DC Current | 0.1A~1200A +/- (1.5%+5) |
| AC Voltage | 1mV ~750V ( +/- 1.2%+3) |
| DC Voltage | 0.1mV~1000V (Auto) +/-(1.5%+5) |
| Resistance | 100m Ohm ~ 40M Ohm |
| Continuity buzzer | YES |
| Diode | Test Volt / 3V |
| Frequency | 0.01Hz ~ 500KHZ |
| AC/DC WATT | —— |
| Autorange | YES |
| Bargraph | YES |
| Auto power OFF | YES |
| Peak hold | —— |
| Data hold | —— |
| MAX/MIN | YES |
| REL(ZERO) | YES |
| Size | 221*62*35mm |
| Weight | 500g |
